Electromagnetic Flow Meter

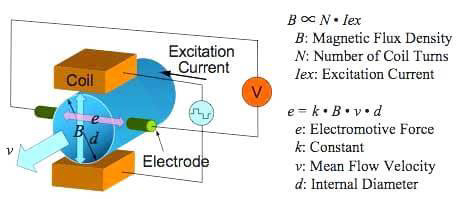

Magnetic flow meters work based on Faraday’s Law of Electromagnetic Induction. According to this principle, when а conductive medium passes through a magnetic field B, a voltage E is generated which is proportional to the velocity v of the medium, the density of the magnetic field, and the length of the conductor. In a magnetic flow meter, a current is applied to wire coils mounted within or outside the meter body to generate magnetic field. The liquid flowing through the pipe acts as the conductor and this induces a voltage that is proportional to the average flow velocity. This voltage is detected by sensing electrodes mounted in the Magflow meter body and sent to transmitter which calculates the volumetric flow rate based on the pipe dimensions.
Key Features
• Performs well with dirty, corrosive and abrasive fluids
• Minimal maintenance required
• Long operational life
Industrial Applications
Line Size with Flow Range
| Line Size | Flow Range (M3/Hr) | |
|---|---|---|
| Min. Flow | Max. Flow | |
| 15 mm | 0.3 | 6 |
| 20 mm | 0.6 | 11 |
| 25 mm | 0.9 | 18 |
| 32 mm | 1.4 | 29 |
| 40 mm | 2.3 | 45 |
| 50 mm | 3.5 | 71 |
| 65 mm | 6 | 119 |
| 80 mm | 9 | 181 |
| 100 mm | 14 | 283 |
| 125 mm | 22 | 442 |
| 150 mm | 32 | 636 |
| 200 mm | 56 | 1131 |
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Diameter | 15–2000 mm |
| Velocity Range | 0.5–10 m/s |
| Degree of Accuracy | ±0.5%, ±1% R |
| Medium Conductivity | ≥5 µS/cm (Optional ≤DN150) |
| Nominal Pressure | 1.0–4.0 MPa |
| Environment Temperature | -10°C to +55°C |
| LCD Display | Available |
| Lining | CR / PTFE / FEP / PFA / FVMO / PU |
| Medium Temperature | 0–80°C / 0–120°C / -10–180°C / 70–250°C / -20–60°C |
| Output Signal | 4–20 mA; Pulse / Frequency 2 KHz (Default), 5 KHz (Max) |
| Supply Voltage | 110/220 VAC (100–240 VAC), 50 Hz/60 Hz; 24 VDC ±10% |
| Power Dissipation | ≤15 VA |
| Digital Communication Signal | RS-485, Support standard Modbus-RTU protocol |
| Electrode and Ground Electrode Material | SS316L, Hastelloy B, Titanium, Tantalum, Platinum |
| Number of Electrodes | Standard configuration 3–4 electrodes (two measuring electrodes plus a grounding electrode), according to the caliber configuration |
| Cable Length (Separate Body-Type) | 10 m standard configuration connecting line, optional 1–50 m |

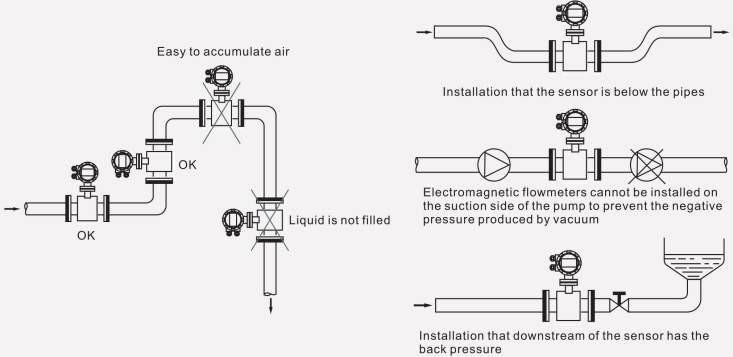

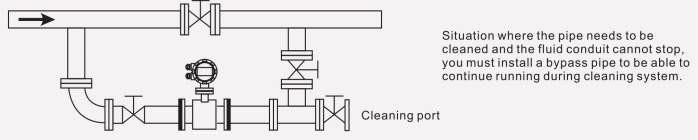

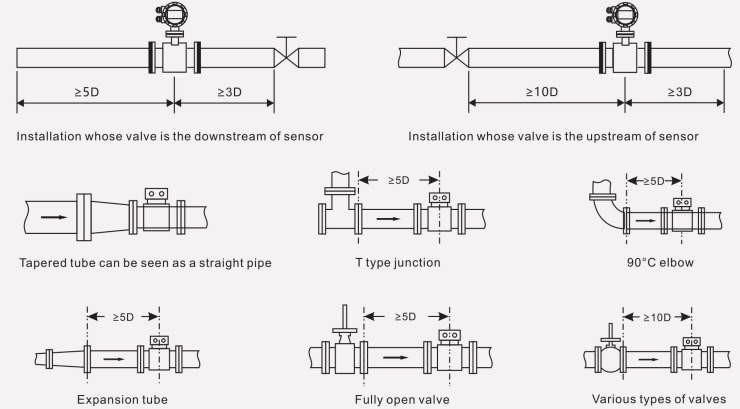

Installation

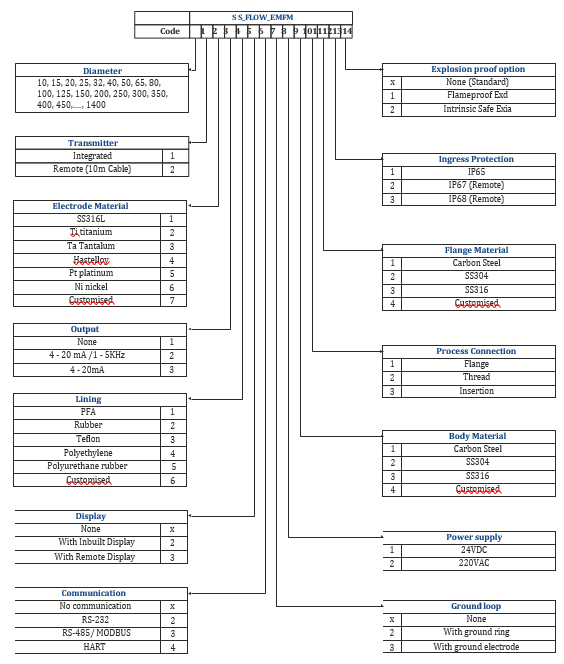

| Parameter | Specification |
|---|---|
| MOC | 1. Carbon Steel / 2. SS304 / 3. SS316 / 4. Customised |
| Output | 1. 4–20 mA / 2. RS485 / 3. 4–20 mA + HART / 4. Pulse |
| Electrode Material | 1. SS316L / 2. Titanium / 3. Tantalum / 4. Hastelloy / 5. Platinum / 6. Customised |
| Power | 1. 24V DC / 2. 220V AC |
| Lining | 1. Rubber / 2. Teflon / 3. PFA / 4. Polyethylene / 5. Polyurethane Rubber / 6. Customised |
| Protection | 1. IP65 / 2. IP67 (Remote) / 3. IP68 (Remote) |
| Pressure | 1. Up to 16 Bar / 2. Other |
| Connection | 1. Flange / 2. Thread / 3. Insertion / 4. TC |
| Temperature | 1. 80°C / 2. 120°C / 3. 180°C / 4. 250°C |
| Transmitter | 1. Integrated / 2. Remote |
| Display | 1. Integral / 2. Remote |
